Kasetni unutrašnji multi inverteri

Fujitsu klima uređaj kasetni multi inverter AUXG09KVLA

Uskoro

Specifikacija

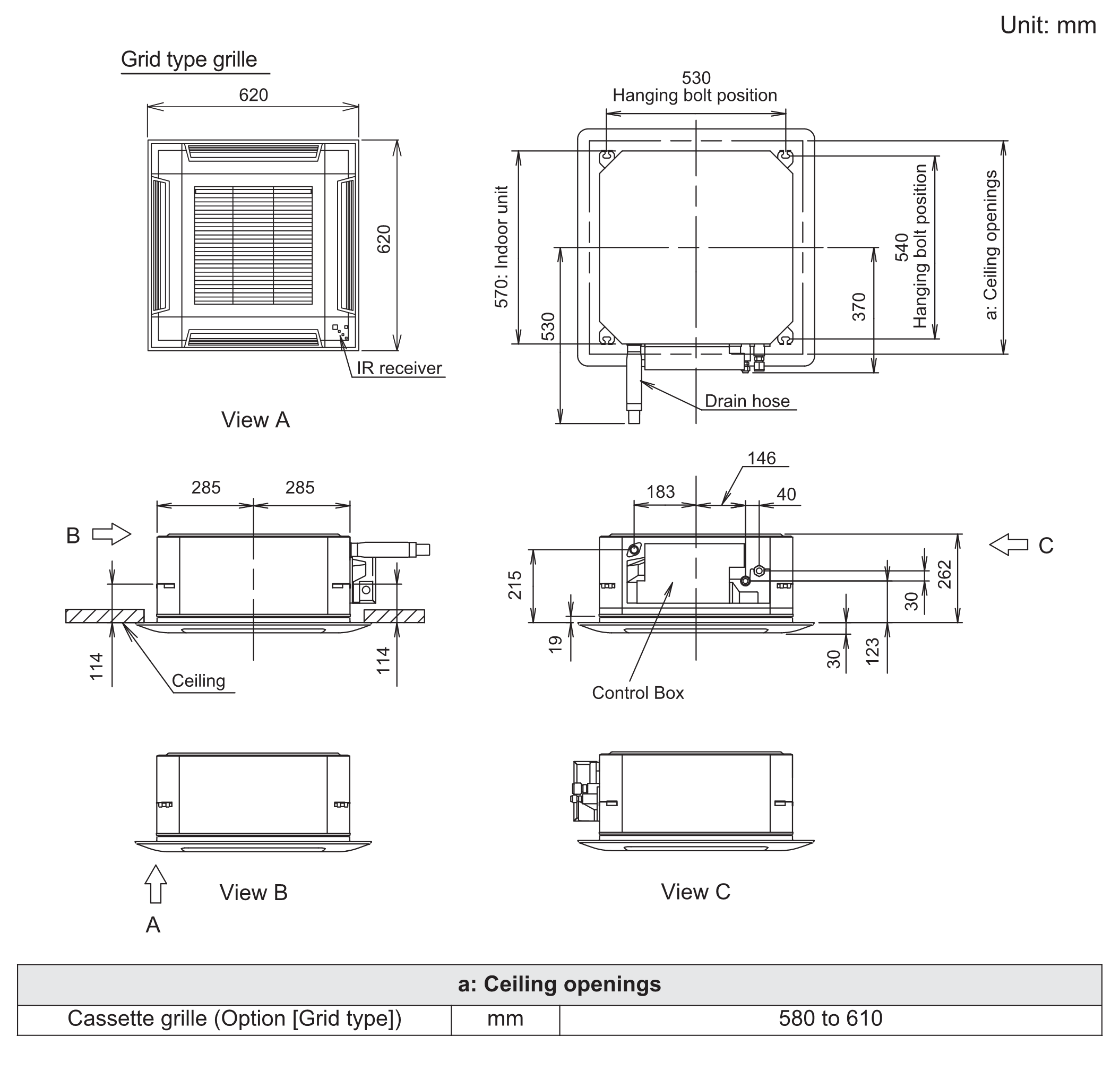

Dimenzija

tr>

Model No.					AUXG07KVLA	AUXG09KVLA	AUXG12KVLA	AUXG14KVLA
Power supply					10 230 V ~50 HZ
Available voltage range					198-264 V
Capacity				kW class	2.0	2.5	3.5	4.0
Input power				W	18		23	28
Running current				A	0.15		0.19	0.22
Fan	Airflow rate	Cooling	HIGH	m³/h	540		610	680
			MED		490		530	580
			LOW		440		470	940
			QUIET		390		410	410
		Heating	HIGH		540		610	790
			MED		490		530	680
			LOW		440		470	580
			QUIET		390		410	450
	Type x Q'ty				Turbo fan x 1
	Motor output			W	54
Sound pressure level^*		Cooling	HIGH	dB (A)	33		37	38
			MED		31		34	35
			LOW		29		31	32
			QUIET		27		28	29
		Heating	HIGH		34		37	43
			MED		32		34	38
			LOW		29		31	34
			QUIET		27		29	30
Sound power level		Cooling		dB (A)	46		49	50
		Heating			47		49	55
Heat exchanger type		Dimensions (H x W x DI)		mm	210 x 1.310 x 13.3 210 x 1,250 x 13.3
		Fin pitch		mm	1.2
		Rows x Stages			Main1: 1 x 10 Main2: 1 x 10
		Pipe type			Copper tube
		Fin type			Aluminum
Dimensions (H x Wx D)		Net		mm	245 x 570 x 570
		Gross			265 x 730 x 625
Weight		Net		kg	15
		Gross			19
Connection pipe		Size	Liquid	mm (in)	Ø6.35 (Ø1/4)
			Gas		Ø9.52(Ø3/8)
		Method			Flare
Operation range		Cooling		°C	18 to 32
				%RH	80 or less
		Heating		°C	16 to 30
Drain hose		Material			PVC
		Size		mm	VP25 (Ø 25 [1.D.],Ø 32 [O.D.])
Cassette grille (Grid type: Option)		Model name			UTG-UFYF-W
		Material			Polystyrene
		Color			White Approximate color of Munsell 9PB 9.1/0.2
		Dimensions (H x W x D)	Net	mm	49 x 620 x 620
			Gross		120 X /65 X / 56
		Weight	Net	kg	2.3
			Gross		4.5
NOTES: • The protective function might work when using it outside the operation range • *: Sound pressure level: – These are the measured values in the manufacturer’s anechoic chamber. – Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
