Kanalski unutrašnji multi inverteri
Fujitsu klima uređaj kanalski multi inverter ARXG12KLLAP
Uskoro
- Specifikacija

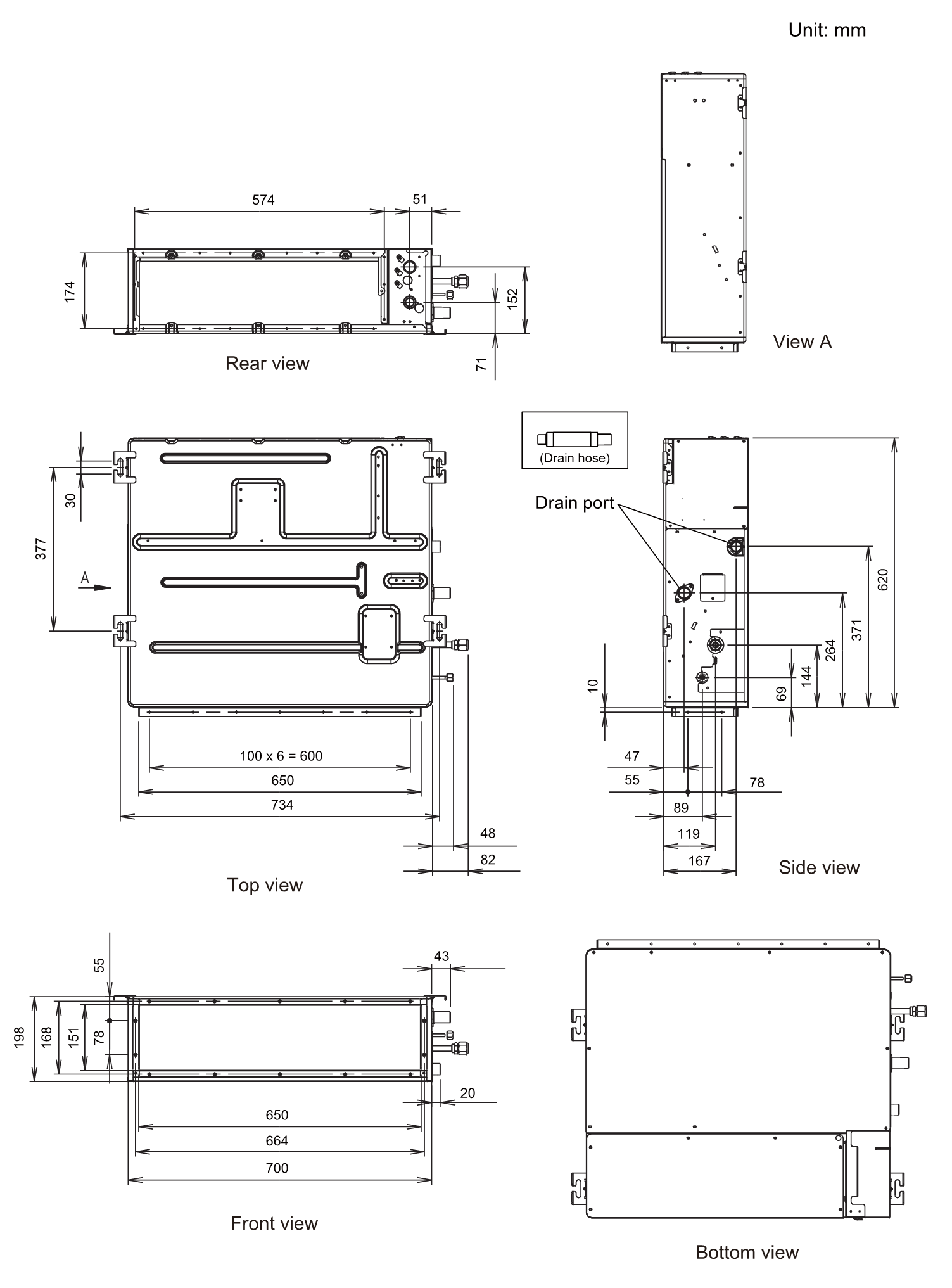

- Dimenzija
| Model No. | ARXG07KLLAP | ARXGO9KLLAP | ARXG12KLLAP | ARXG14KLLAP | ||||
| Power supply | 1Ø 230 V ~ 50 HZ | |||||||
| Available voltage range | 198-264 V | |||||||
| Capacity | kW class | 2.0 | 2.5 | 3.5 | 4.0 | |||
| Input power | W | 33 | 49 | 58 | 76 | |||
| Running current | A | 0.33 | 0.30 | 0.35 | 0.51 | |||
| Fan | Airflow rate | Cooling | HIGH | m3/h | 550 | 600 | 650 | 800 |
| MED | 490 | 550 | 600 | 700 | ||||
| LOW | 470 | 500 | 550 | 600 | ||||
| QUIET | 440 | 450 | 480 | 480 | ||||
| Heating | HIGH | 550 | 600 | 650 | 800 | |||
| MED | 490 | 550 | 600 | 700 | ||||
| LOW | 470 | 500 | 550 | 600 | ||||
| QUIET | 440 | 450 | 480 | 480 | ||||
| Type x Q'ty | Sirocco fan x 2 | |||||||
| Motor output | W | 80 | 81 | |||||
| Recommended static pressure | Pa | 0 to 90 | ||||||
| Sound pressure level* | Cooling | HIGH | dB (A) | 28 | 28 | 29 | 32 | |
| MED | 26 | 27 | 28 | 30 | ||||
| LOW | 25 | 26 | 27 | 28 | ||||
| QUIET | 24 | 25 | 26 | 26 | ||||
| Heating | HIGH | 28 | 28 | 29 | 32 | |||
| MED | 26 | 27 | 28 | 30 | ||||
| LOW | 25 | 26 | 27 | 28 | ||||
| QUIET | 24 | 25 | 26 | 26 | Sound power level | Cooling | dB (A) | 57 | 58 | 60 |
| Heating | 57 | 58 | 60 | |||||
| Heat exchanger type | Dimensions (H x W x D) |
mm | 294 x 500 x 26.6 | 294 x 500 x 39.9 | ||||
| Fin pitch | mm | 1.3 | ||||||
| Rows x Stages | 2 x 14 | 3 x 14 | ||||||
| Pipe type | Copper tube | |||||||
| Fin type | Aluminum | |||||||
| Enclosure | Material | Steel sheet | ||||||
| Color | -- | |||||||
| Dimensions (H x W x D) |
Net | mm | 198 x 700 x 620 | |||||
| Gross | 276 x 968 x 772 | |||||||
| Weight | Net | kg | 16 | 17 | ||||
| Gross | 21 | 22 | ||||||
| Connection pipe |
Size | Liquid | mm (in) | Ø6.35 (Ø1/4) | ||||
| Gas | Ø9.52 (Ø3/8) | |||||||
| Method | Fiare | |||||||
| Operation range | Cooling | °C | 18 to 32 | |||||
| %RH | 80 or less | |||||||
| Heating | °C | 16 to 30 | ||||||
| Drain hose | Material | PVC | ||||||
| Size | mm | Ø 25(I.D.).Ø 32(O.D.) | ||||||
| NOTES: • Values mentioned in the table are based on the following conditions: - Static pressure: 25 Pa • The protective function might work when using it outside the operation range. • Sound pressure level: - These are the measured values in the manutacturer's anechoic chamber. - Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here. | ||||||||
