Fujitsu klima uređaj zidni inverter ASYG12KETA / AOYG12KETA
- Specifikacija

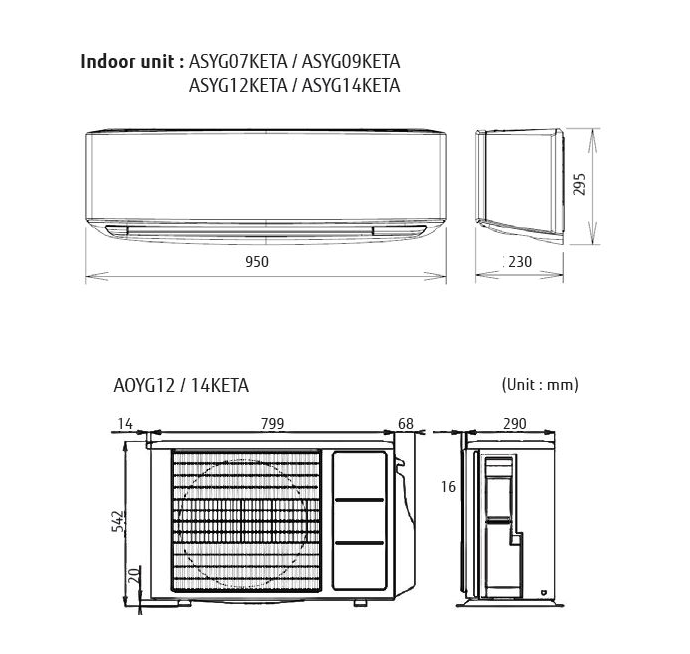

- Dimenzija
- Video
Model No.
|
Indoor unit
|
ASYG12KETA
|
||

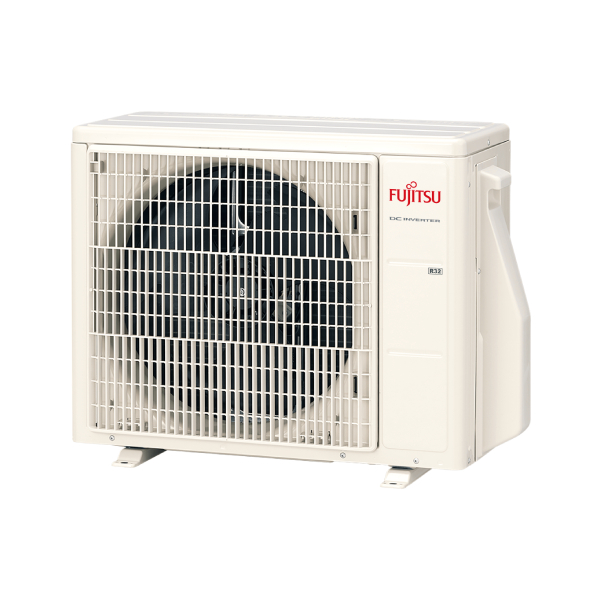

Outdoor unit
|
AOYG12KETA
|
|||
Power source |
|
|||
Capacity |
Cooling
|
kW
|
3.4 (0.9-3.9)
|
|
Heating
|
4.0 (0.9-5.3)
|
|||
Input power |
Cooling/Heating
|
kW
|
0.935/0.960
|
|
EER |
Cooling
|
W/W
|
3.65
|
|
COP |
Heating
|
4.17
|
||
Pdesign |
Cooling/Heating(-10ºC)
|
kW
|
3.4/2.5
|
|
SEER |
Cooling
|
W/W
|
7.30
|
|
SCOP |
Heating (Average)
|
4.40
|
||
Energy Efficiency
Class |
Cooling
|
A++
|
||
Heating (Average)
|
A+
|
|||
Max. Operating Current |
Cooling/Heating
|
A
|
6.5/9.0
|
|
Annual Energy Consumption |
Cooling
|
kWh/a
|
163
|
|
Heating
|
795
|
|||
Moisture Removal |
I/h
|
1.8
|
||
Sound Pressure Level |
Indoor (Cooling)
|
H/M/L/Q
|
dB(A)
|
40/35/30/20
|
Indoor (Heating)
|
H/M/L/Q
|
42/38/33/22
|
||
Outdoor (Cooling/Heating)
|
High
|
50/50
|
||
Sound Power Level |
Indoor (Cooling/Heating)
|
High
|
55/58
|
|
Outdoor (Cooling/Heating)
|
High
|
65/65
|
||
Airflow Rate |
Indoor / Outdoor (Cooling)
|
High
|
m3/h
|
700/1,700
|
Indoor / Outdoor (Heating)
|
High
|
770/1,470
|
||
Net Dimensions
H x W x D |
Indoor
|
mm
|
295x950 (wall slide: 840) x230
|
|
Outdoor
|
mm
|
541x663x290
|
||
Weight |
Indoor
|
kg(lbs)
|
11.0
|
|
Outdoor
|
kg(lbs)
|
25
|
||
Connection Pipe Diameter (Liquid / Gas) |
mm
|
6.35/9.52
|
||
Drain hose Diameter (I.D. / O.D.) |
13.8/15.8 to 16.7
|
|||
Max Pipe Length (Pre-Charge) |
m
|
20 (15)
|
||
Max Height Difference |
15
|
|||
Operation Range |
Cooling
|
ºCDB
|
-10 to 46
|
|
Heating
|
-15 to 24
|
|||
Refrigerant | Type (Global Warming Potential) |
R32 (675)
|
||
Charge |
kg(CO2eq-T)
|
0.7 (0.473)
|
